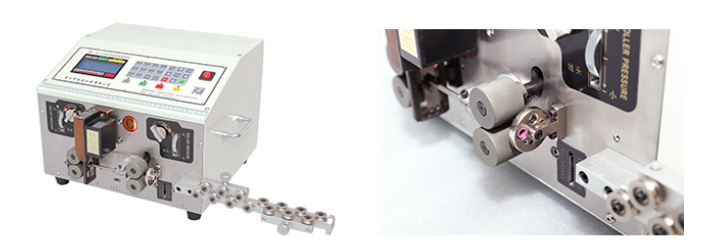

Automatic computer strip machine(6mm²)
Apr 07, 2021|
View:1047It can cut and peel wires less than 6 mm²， widely used in auto and electricity industries .with high speed and high precision drive,the stripping series adopted step driving.
Cutting length :0.5mm-99999.99mm;
stripping length:0.5mm-30mm;
Wire stripping range:0.1—6mm²
Productivity:70 pcs
Model | HC-515C ( 6 mm2) |
Dimensions | L418*W358*H308 |
Weight | 25KG |
Display | Chinese interface LCD display or English interface |
Power | 220V/400W |
Cutting Length | 0.5mm-99999.99mm |
Stripping Length | 0.5mm-30mm |
Intermediate peeling and cutting | Intermediate cut at fifteen |
Cutting Range | 0.1-6mm2 |
Wire Material | PVC andTeflon, glass wire |
Cutting tolerance | Within 0.002* Lmm L=cutting length |
Max. wire diam | 1-6mm |
Driving way | Four-wheel drive, independent drive box driver |
Productivity(pcs/m) | 70PCS |
