1.The machine enables the automatic completion of various tasks such as setting number tubes, peeling, twist line, and cold-pressure terminal connection. This integration of functions helps to significantly improve efficiency in wire processing operations.
▶ Machine Characteristics
1.The machine enables the automatic completion of various tasks such as setting number tubes, peeling, twist line, and cold-pressure terminal connection. This integration of functions helps to significantly improve efficiency in wire processing operations.

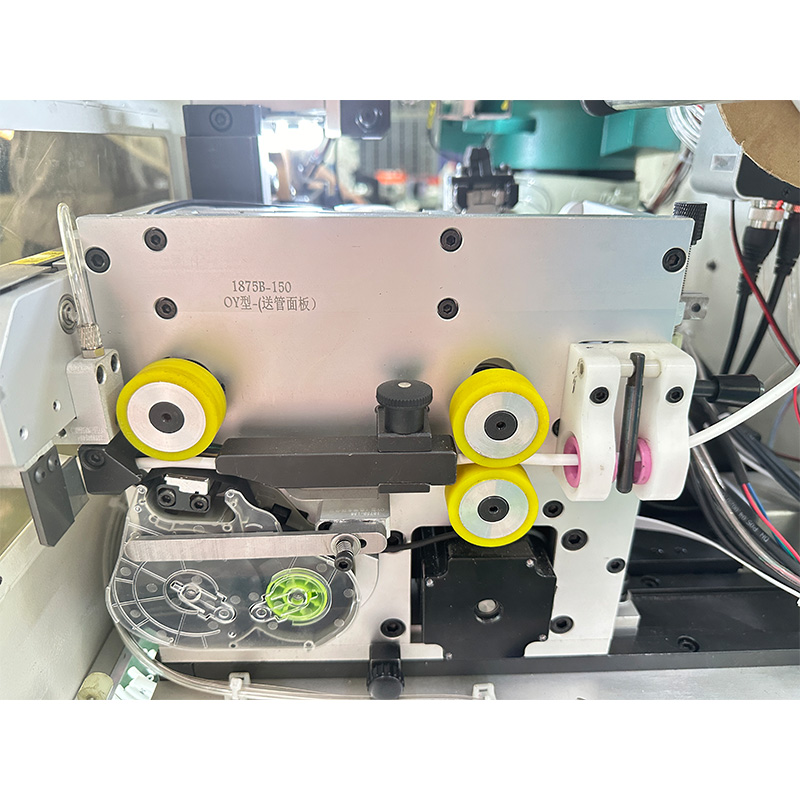

2. The machine is equipped with a fully automatic set number tube function, allowing for the automatic printing of set number tubes. The length of the number tube can be set within the range of 10-30mm, and the number of number tube printing is automatically adjusted. This feature is suitable for different types of number tubes.

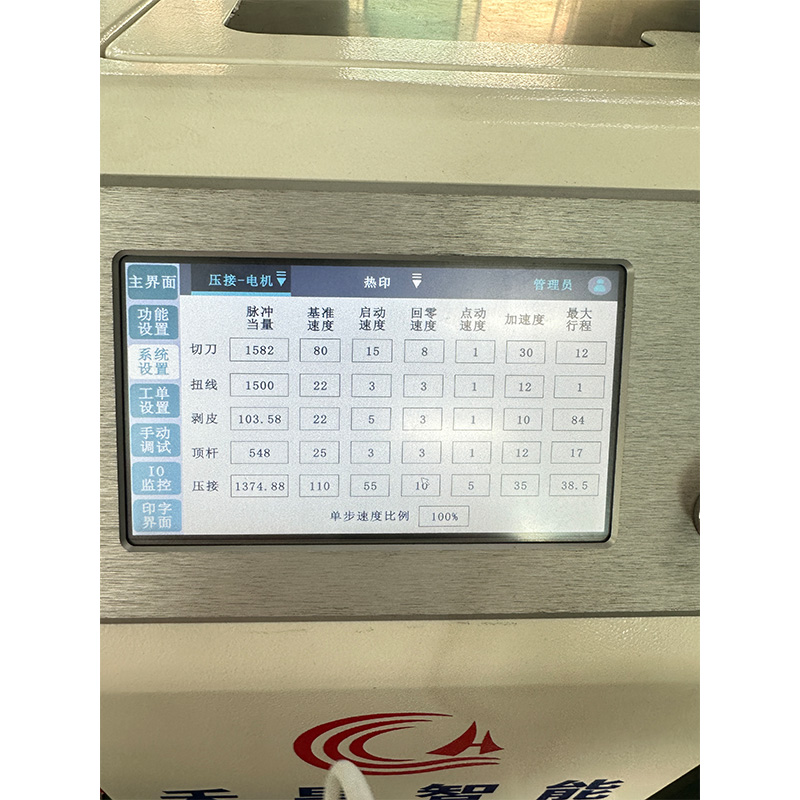

3. The machine allows for direct touch screen input of the print content. Users have the flexibility to change and switch the content at any time. Additionally, the machine can automatically detect color changes in the core wire within the protective cover and provide reminders to users to insert the corresponding color.
4. Self-detection functions during production. It can perform tests and self-detections on the number tube tube and wire to ensure they are in place. This feature simplifies operation and ensures worry-free production with a focus on quality assurance.
▶ Machine Specification

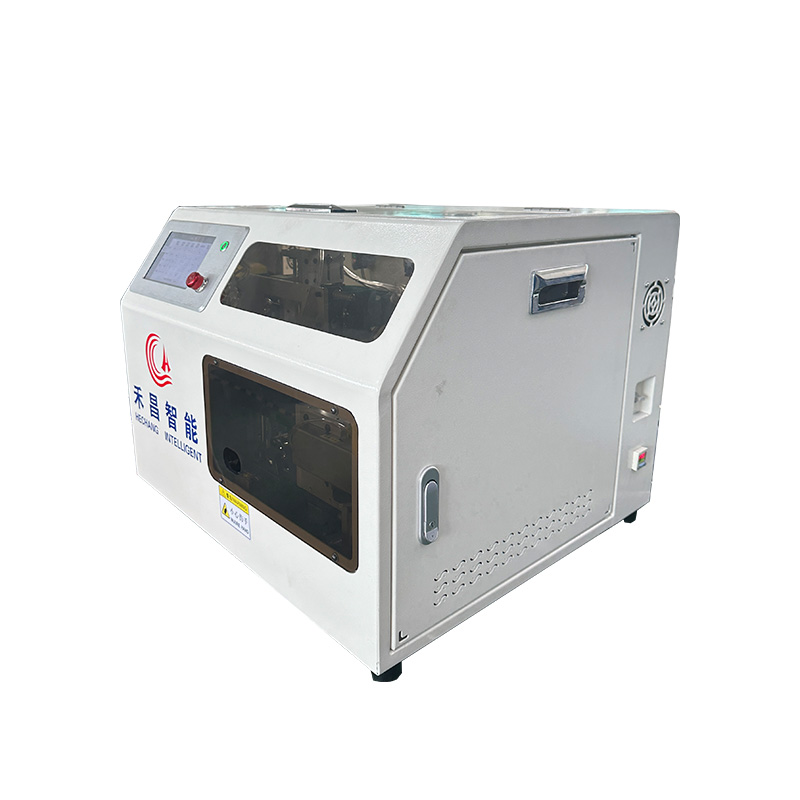

Model | HC-1875B Y/O Number Tube inserting and terminal Crimping Machine |
Power | 220V/450W |
Function | Peeling, twisting, printing number tube, set number tube, pressure connection terminal |
Production rate | 600 pcs/h |
Display | touch screen |
Processable scope | 0.5-4.0mm2 |
Processed length | Wearing a number tube requires guarantee that the length of the wire can be used to be 75mm without the number tube. |
Peeling length | 1-18mm |
Peeling accuracy | 0.01mm |
Drive method | Servo+step |
Capable | 4000kg |
Way of sending | Manually |
Start method | Induction trigger startup and foot stamp start |
Detection device | Circuit penetration detection, wire head trigger detection, lack of number tube detection, ribbon detection |
air pressure | 0.55-0.65MPA |
Optional device | Set number tube device |
Number tube length | 10-30mm |
Dimensions/weight | 650*600*500mm（(excluding protruding part)/110kg |
▶ Watch Video

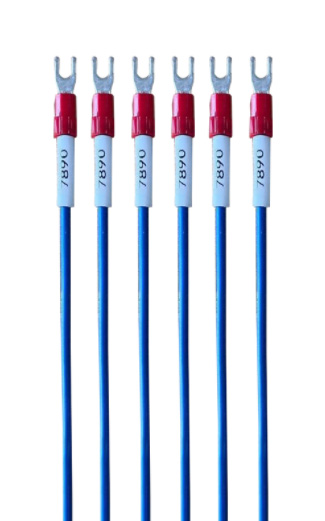

▶ Application
