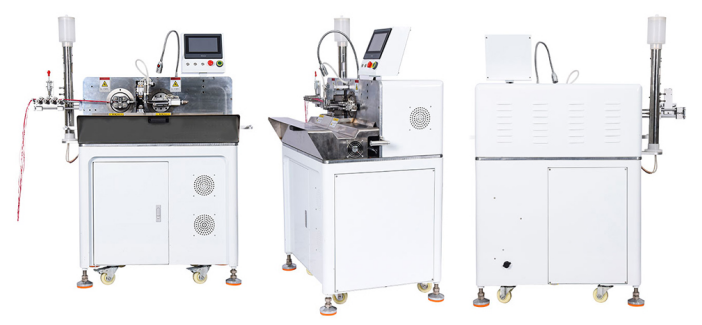

HC-20+NT double wire stripping twisting cutting tinning machine
Mar 25, 2021|
View:1156·Computer touch screen and English operation menu,easy to operate.
·Adopt motor control inch wire feeding, stripping, wetting action each time the action will automatically match.
·Wire twisting is made possible by the washboard style, using cylinder labor.
·Native wetting angle the point dip close to 90 degrees, the diameter wetting average (point dip depth and accurate).
·The surface of tin tin crumbs and the design of to automatically erase clean the functional wetting at chipless.
Model | HC-20+NT |
Outer dimensions | L670mm*W840mm*H1200mm |
Weight | 315kg |
Power supply | AC220V/50HZ |
Function | Wire cutting and stripping, two sides tinning crimping tinning |
Display | English / Chinese interface |
Cutting length | 15mm-220mm |
Cutting tolerances | ±( 0.002×L )mm L : indicates a cutting length. |
Wire length | standard wires shortest left insulation length:8mm |
stripping length | 1-10mm |
Detector | Wire existence,wire overload, strip error,terminal existence, crimp error. |
Compressed Air | 5--6.5kg use clean dry air |
Productivity(pcs/h) | 12000pcs/h |
