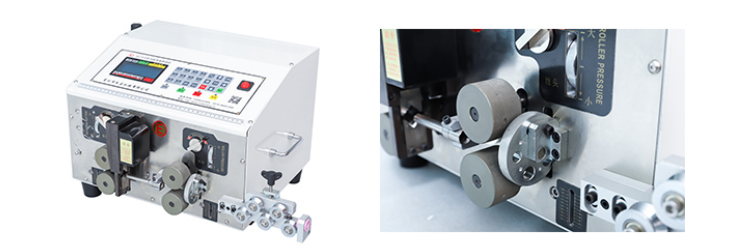

Large cable Automatic computer strip machine(25mm²)
Apr 09, 2021|
View:1085This machine is mainly used for auto industry, electricity industry, electriccontrolcabinet, wires in battery holder/cell box/ .
It can strip the whole wires according to the required length and stripping head, thus improving the efficiency. BV hard wire and soft wire.
Model | HC-515E | |
Outer dimensions | L650mm*W480mm*H328mm | |
Weight | 35kg | |
Power supply | 220V | |
Power consumption(220V) | 500W | |
Cutting length | 0.5mm--99999.99mm | |
Cutting tolerances | ±( 0.002×L )mmL : indicates a cutting length. | |
Stripping length | 1mm--30mm | |
Applicable wires | Type | AVSS,THHN,VSF, IV, KV, UL ,BUR,, BVR, Glass Wire, Battery cable, control cabinet wire,W1, W2, VSF, etc |
Size | 1-25mm2 multi strands softwire | |
1-16mm2BV hard wire | ||
Wire feed speed | variable | |
Conduit diameter | 1-9mm | |
Drive supply | Stepping puls motor/Air cylinderfour-wheels drive , independent drive box driver | |
Productivity(pcs/min) | 30pcs/min | |
